Refurbished Veterinary C-Arm
Product Summary

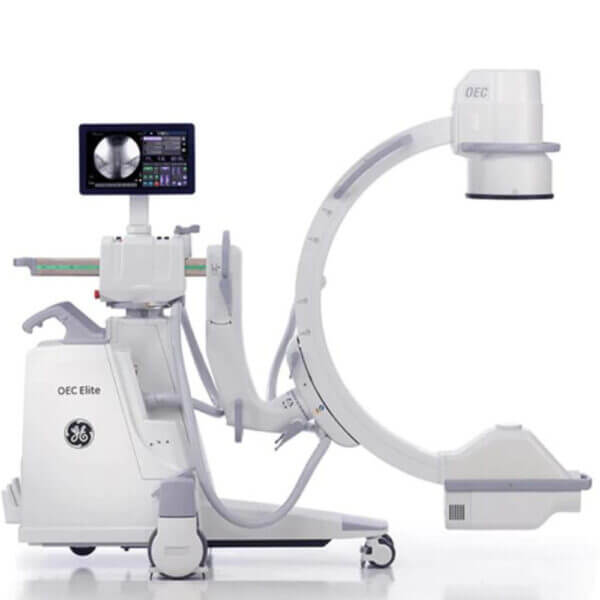

The refurbished GE OEC 9900 Elite C-Arm is designed to optimize veterinary surgical efficiency with high image quality. The system delivers remarkable image clarity, advanced dose management through automatic imaging profiles and dose control modes, and streamlined operational ease across a wide range of veterinary imaging procedures.
A 60 kHz high-frequency, 15 kW generator supports versatile, efficient imaging with up to 120 kVp and up to 75 mA for radiographic film exposure, continuous high-level fluoro (HLF) up to 20 mA, digital spot imaging up to 75 mA, and digital cine pulse.
15 kW
Generator power
19"
Flat panel monitors
1k²
High-resolution imaging
60 kHz
High-frequency generator
Key Features
1k² High-Resolution Imaging
Twice the resolution and four times the information for superb fluoroscopic viewing in veterinary procedures.
Advanced Dose Management
Automatic imaging profiles and dose control modes, including Low Dose Mode, help manage exposure.
15 kW Pulsed Generator
15 and 30 pps with up to 150 mA for high-powered pulse mode to stop or freeze motion, including pulsed cine bolus chasing.
Articulating 19" Monitors
High-resolution black-and-white monitors with 700 Cd/m² maximum brightness, visible from all four sides.
Battery-Buffered Design
Patented battery-buffered design helps keep imaging uninterrupted during challenging environments or power fluctuations.
Collision Detection Bumper
Collision detection bumper is included for veterinary patient safety during C-Arm positioning.
Key Advantages
Patented design
Uninterrupted, battery-buffered imaging
The OEC 9900’s patented battery-buffered design ensures uninterrupted imaging even in challenging environments or power fluctuations, supporting consistent performance when power conditions are less than ideal.
Separated 15 kW generator
The generator is separated from the X-ray tube to provide high power without increasing X-ray tube housing heat, improving cooling efficiency during demanding cases.
High-power rotating anode
A high heat capacity rotating anode X-ray tube with a cooling system supports long fluoro on-times, with nominal focal spots of 0.3 and 0.6 for consistent image performance and durability.
Feature List
- 1k² high-resolution imaging with twice the resolution and four times the information
- Dual 19" high-resolution black-and-white monitors
- 700 Cd/m² maximum brightness
- Optional right-hand color monitor for side-by-side endoscopic and black-and-white fluoro images
- Advanced articulation for monitor viewing from all four sides
- DICOM 3.0 internal interface with Query and Retrieve
- On-board DVD/CD read and write capability
- On-board paper or hard-copy film option
- High-resolution 9" (23 cm) or 12" (31 cm) tri-mode image intensifier
- Collision detection bumper for veterinary patient safety
- 15 kW generator for pulsed cine bolus chasing
- 15 and 30 pps with up to 150 mA high-powered pulse mode
- Veterinarian-controlled X-ray footswitch and handswitch
- Fluoro, High Level Fluoro (HLF), Digital Spot, Roadmap, Digital Subtraction, and Low Dose Mode
- High-power rotating anode X-ray tube with cooling system
- Patented battery-buffered design
- 60 kHz high-frequency generator
- Continuous high-level fluoro (HLF) up to 20 mA
- Digital spot imaging up to 75 mA
- Radiographic film exposure up to 120 kVp and 75 mA
Veterinary Applications
This system is ideally suited for a range of veterinary surgical needs, including:
Display and Documentation
Moveable 19" flat panel monitors
- Standard high-resolution black-and-white bright monitors for superb fluoroscopic viewing
- 700 Cd/m² maximum brightness
- Optional right-hand color monitor for side-by-side endoscopic and black-and-white fluoro images
- Advanced articulation makes monitors visible from all four sides
Easy archiving and documentation
- DICOM 3.0 internal interface with Query and Retrieve
- On-board DVD/CD read and write capability
- On-board paper or hard-copy film option
Imaging Chain
The 1k² high-resolution imaging chain uses a high-resolution 9" (23 cm) or 12" (31 cm) tri-mode intensifier.
| Intensifier | Tri-mode fields |
|---|---|
| 9" (23 cm) | 9", 6", 4.5" (23, 15, 11 cm) |
| 12" (31 cm) | 12", 9", 6" (31, 23, 15 cm) |
Generator and X-ray Tube
15 kW generator for pulsed cine bolus chasing
- 15 and 30 pps with up to 150 mA for high-powered pulse mode to stop or freeze motion
- Generator is separated from the X-ray tube to provide high power without increasing X-ray tube housing heat, improving cooling efficiency
- 60 kHz high-frequency, 15 kW power
- Up to 120 kVp and up to 75 mA for radiographic film exposure
- Continuous high-level fluoro (HLF) up to 20 mA
- Digital spot imaging up to 75 mA and digital cine pulse
High-power rotating anode X-ray tube
High heat capacity X-ray tube with cooling system for long fluoro on-times. Nominal focal spots of 0.3 and 0.6 deliver consistent performance and durability, backed by heat capacity and cooling rates suited to extended use.
Veterinary patient safety
Collision detection bumper for veterinary patient safety during C-Arm movement and positioning.
Veterinarian-Controlled Imaging Modes
Veterinarian-controlled X-ray footswitch and handswitch provide direct access to:
- Fluoro
- High Level Fluoro (HLF)
- Digital Spot
- Roadmap
- Digital Subtraction
- Low Dose Mode
