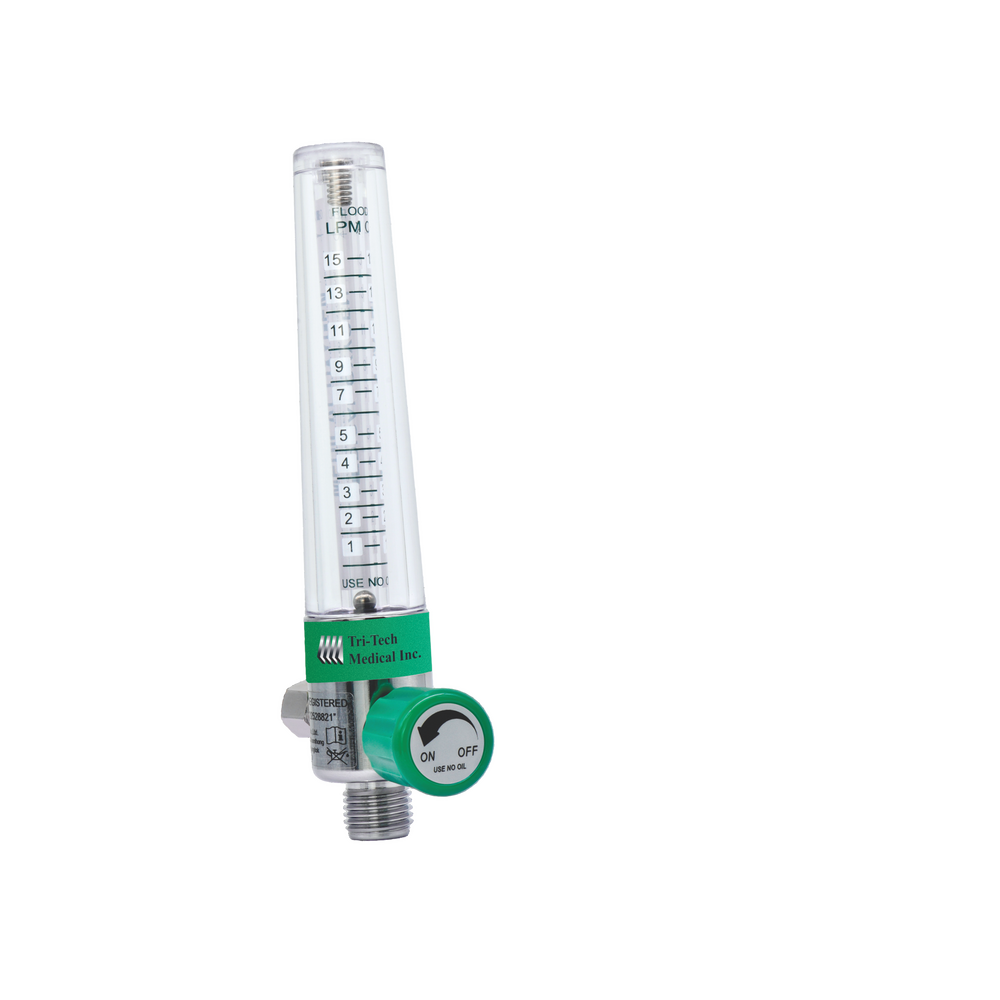

Oxygen and Medical Air Flow Meters

Infinium Veterinary provides Oxygen and Medical Air Flow Meters designed for exceptional dependability and precision in animal health environments. These brass-bodied devices with polycarbonate housings deliver accurate flow control, supporting a standard 0-15 lpm range with an expanded 1-5 lpm scale for low-flow accuracy. Available in multiple configurations including various inlet connections and color codes, they facilitate seamless integration into veterinary systems, enhancing gas delivery for procedures and recovery in practices and hospitals. These flow meters offer significant advantages for veterinary professionals, including superior flow accuracy maintained through back pressure compensation, which ensures consistent performance even under varying conditions. Their durable construction reduces the need for frequent replacements, optimizing budgets in busy animal care facilities. With a variety of flow rate options and connection styles, they provide flexibility for diverse clinical needs, from small animal clinics to larger veterinary hospitals, while features like included inlet filters and extensions improve functionality and ease of use, ultimately supporting better patient outcomes in animal health.

Key Features

• Brass body construction with polycarbonate housing for enhanced durability and reliability
• Standard flow range of 0-15 lpm with 1-5 lpm expanded scale for precise low-flow measurements
• Additional Oxygen flow rates: 0-1 lpm, 0-3.5 lpm, 0-8 lpm, 0-70 lpm
• Additional Medical Air flow rates: 0-25 lpm, 0-70 lpm
• Variety of inlet connections: DISS Handtight Nut & Nipple, Ohmeda-style, Chemetron-style, Puritan-style
• NFPA or ISO color coding with gas-specific labeling on inner tube and knob
• Includes inlet filter and inlet extension for improved functionality
• Back pressure compensated to maintain flow accuracy
• Calibrated at 50 psi inlet pressure
• 9/16”-18 RH DISS 1240 outlet connection
• Flow accuracy of ±0.5 LPM or ±10% of reading, whichever is greater
• Minimum flood/flush rate of 50 LPM
• Special options available: MRI compatible (not in all configurations), Power Take-off (PTO), Elbow Left (EL), Elbow Right (ER)

Variations include models tailored by connection type, gas service, flow rate, color code, and special options. For instance, DISS Handtight models like 57-0104 (Oxygen NFPA) offer secure, user-friendly fittings for quick setup in veterinary environments; Ohmeda-style models such as 57-0107 (Oxygen NFPA) ensure compatibility with specific gas systems commonly used in animal hospitals; Chemetron-style options like 57-0109 (Oxygen NFPA) provide rapid connections ideal for emergency veterinary care; Puritan-style variants including 57-0108 (Oxygen NFPA) support alternative configurations for flexible integration. All are available in NFPA or ISO versions, with examples like 57-70-0104 for high-flow 0-70 lpm Oxygen or 57-25-0609-1PTO for 0-25 lpm Medical Air with ISO color and Power Take-off, differentiating them for specialized veterinary applications.

Veterinary Applications

In veterinary medicine, these flow meters play a crucial role in delivering controlled oxygen and medical air therapy to animals across various settings, from routine check-ups in small practices to complex surgeries in animal hospitals. They enable precise gas administration during anesthesia induction, respiratory support for critical cases like pneumonia in companion animals, or post-operative recovery for equine patients, ensuring optimal oxygenation and reducing complications. Their adaptability to different flow rates and connections makes them indispensable for emergency responses in exotic animal care or intensive units, ultimately contributing to improved animal health and welfare by maintaining accurate and reliable gas delivery tailored to the unique needs of veterinary professionals.
