Medical Illumination System Two Operating Room Lights

The System Two Operating Light Series from Medical Illumination is a premier choice for veterinary surgical illumination, engineered to deliver profoundly brighter, whiter, and cooler light with exceptional adjustability. Ideal for veterinary practices and animal health facilities, it provides vivid, accurate colors, superior shadow control, and virtually no heat emission, enhancing precision during procedures on animals of all sizes.

Description

The System Two Operating Light Series represents a pinnacle in surgical lighting technology, tailored for the demands of veterinary medicine. Designed by Medical Illumination, this flagship line offers unparalleled brightness, whiteness, and cool operation, ensuring optimal visualization in animal health settings. With its advanced optics and cross-focus technology, it delivers precise illumination without heat, making it an essential tool for veterinarians seeking accuracy and efficiency in surgical environments.

Advantages

The System Two provides significant benefits for veterinary professionals, including a brilliant 130,000 lux output for clear visibility of intricate details during animal surgeries. Its 4,300° K pure white illumination ensures color-accurate rendering, crucial for identifying tissues and anomalies in diverse species. The cross-focus technology allows seamless adjustment of the light pattern from 9″ to 13″, minimizing shadows without repositioning, which is particularly advantageous in dynamic veterinary operating theaters. With near-zero radiated heat, it maintains a comfortable environment for both the veterinary team and animal patients, reducing stress and improving outcomes. Additionally, the five-stage dimming and ambient light mode support minimally invasive procedures, while the 50,000-hour LED life offers long-term reliability and cost savings for busy animal health practices.

Key Features

  • 130,000 lux output for intense, focused illumination
  • 4,300° K pure white color temperature for accurate color perception
  • Cross-focus technology enabling adjustable light pattern from 9″ to 13″
  • Five-stage dimming controlled via sterilizable handle
  • Ambient light (minimally invasive) mode for low-light procedures
  • 50,000-hour rated LED life for extended durability
  • Near-zero radiated heat and low energy consumption
  • Superior shadow control, even with single light head
  • Advanced suspension arm design for smooth, extensive coverage
  • Control all functions within the sterile field
  • Available in single, dual, and triple mount configurations for flexibility
  • Optional HD camera and monitor mounting for enhanced visualization
  • Optional touchscreen wall control for remote management

Veterinary Applications

In veterinary practices and animal health hospitals, the System Two Operating Light Series excels in a variety of surgical and procedural contexts. It is particularly valuable for orthopedic surgeries on large animals like horses or dogs, where precise shadow-free lighting aids in bone alignment and tissue repair. For small animal procedures, such as feline dental work or avian surgeries, the adjustable focus and cool operation prevent overheating sensitive patients, ensuring safer interventions. In emergency veterinary settings, the system’s quick dimming and ambient modes support rapid diagnostics and minimally invasive techniques, while its compatibility with video options allows for real-time consultation or training in multispecies care. Overall, this lighting solution integrates seamlessly into veterinary workflows, enhancing outcomes in companion animal, exotic, and livestock medicine by providing reliable, high-quality illumination tailored to the unique needs of animal health professionals.

Weight
Weight ~104.5 lbs 47.4 Kg
Dimensions
Ceiling Rod 2.5” Dia. x 9.0” – 43.0” long (depending on ceiling height) 63.5 mm Dia. x 228.6 - 1092.2 mm long (depending on ceiling height)
Ceiling Casting 17.0” Dia. x 4.7” deep 431.8 mm Dia. x 119.4 mm deep
Light Head Assembly 25.5” Dia. x 4.75” deep 648 mm Dia. x 120 mm deep
Arm (articulated) 4.0” Dia. (tapered) x 26.0” long 102 mm Dia. (tapered) x 660 mm long
Rotations
Ceiling Mount/Extension Arm Interface Continuous
Articulating/Extension Arm Interface Continuous
Articulating Arm Vertical Movement +15 Degrees, -65 Degrees
Articulating Arm/Yoke Interface Continuous
Yoke/Lamp Head Interface +/-165 Degrees (330° range)
Light Power & Output
Input Voltage 100 – 240 VAC 50/60 Hz – Single Phase
LED Life 50,000 hours (average)
Power 120 Watts
Correlated Color Temperature 4,200° Kelvin ±300°K (merged with 4,300° K variant)
Irradiance 128 W/m² (1 m)
Color Rendering Index 95
Focal Length 39.4″ 1 meter
Light Field Diameter (adjustable) 9.5″ – 14″ (merged with 9" - 13") 229 mm – 356 mm (merged with 22.86 cm - 33.02 cm)
Illumination Intensity 130,000 lux
Dimming Levels Five-stage
Radiated Heat Near-zero
Dimming – Intensity Levels Guide
100% 130,000 lux
87.5% 113,750 lux
75% 97,500 lux
62.5% 81,250 lux
50% 65,000 lux
Endo Mode 8,500 lux
Single Mount Specifications

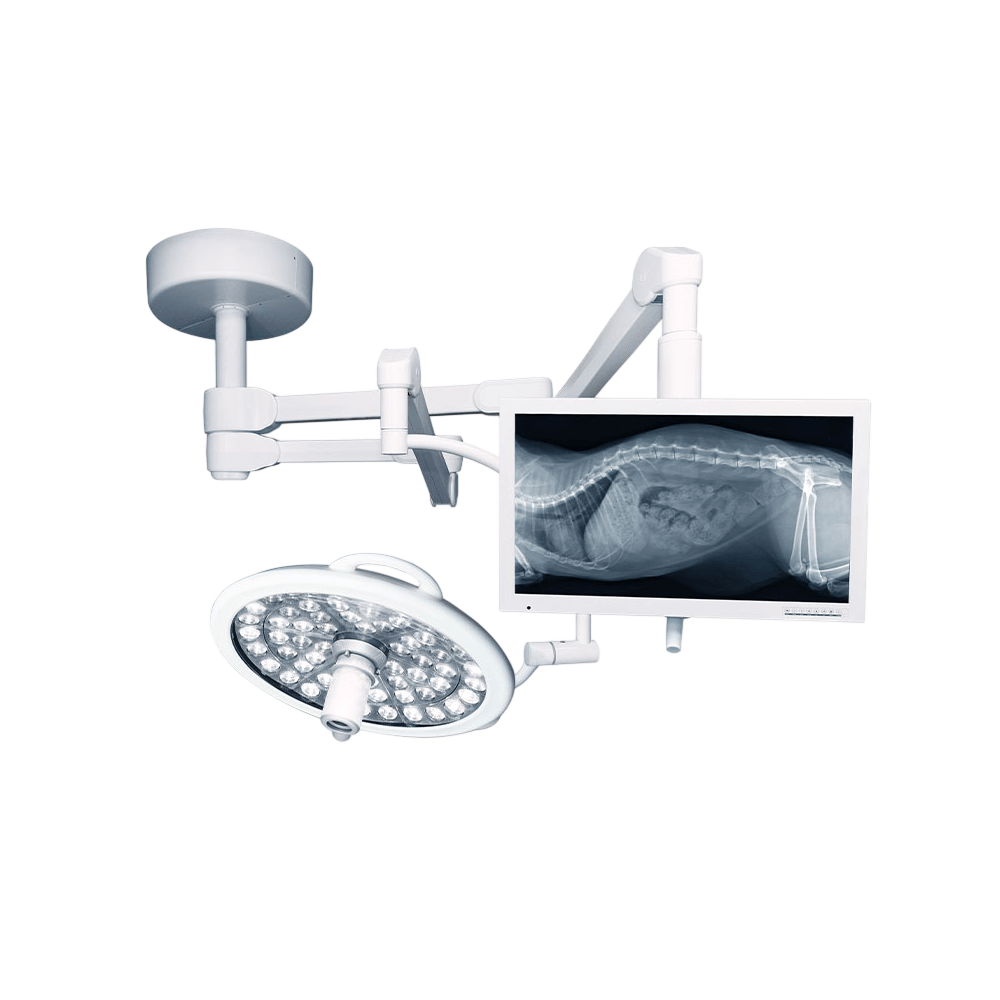

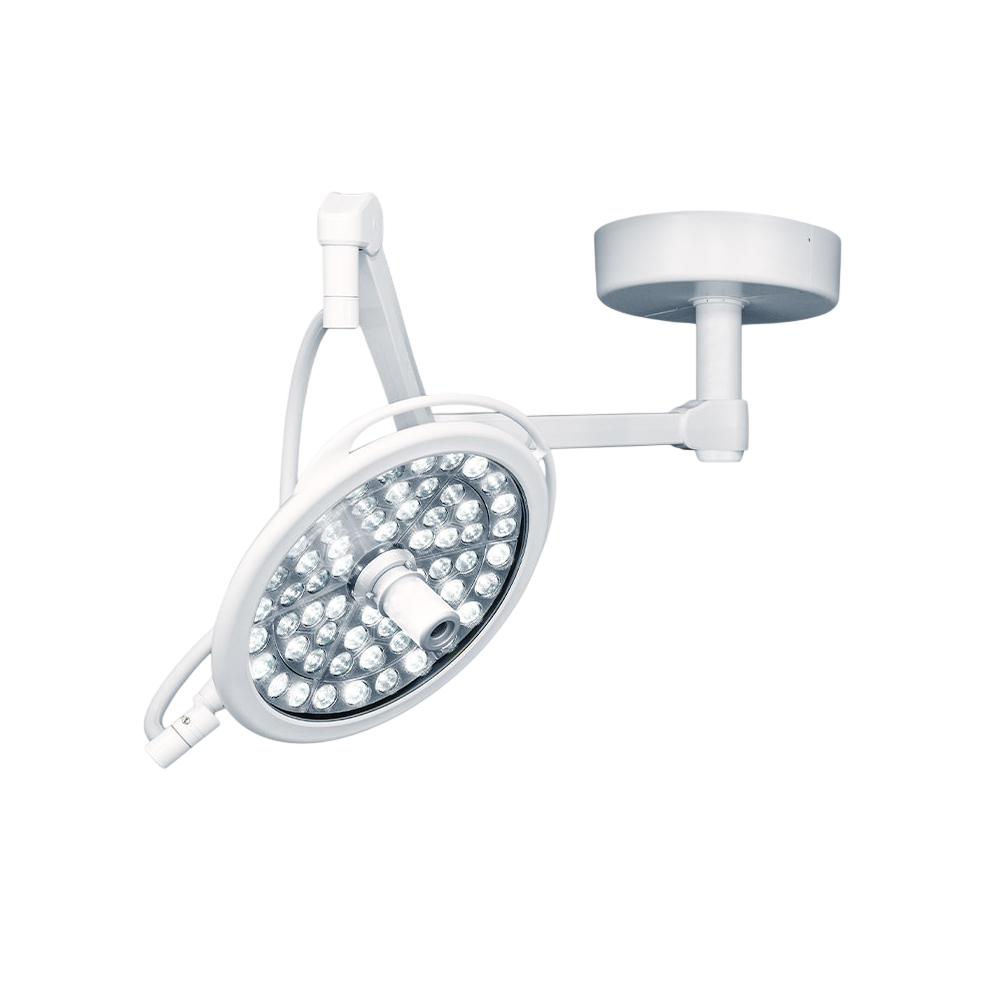

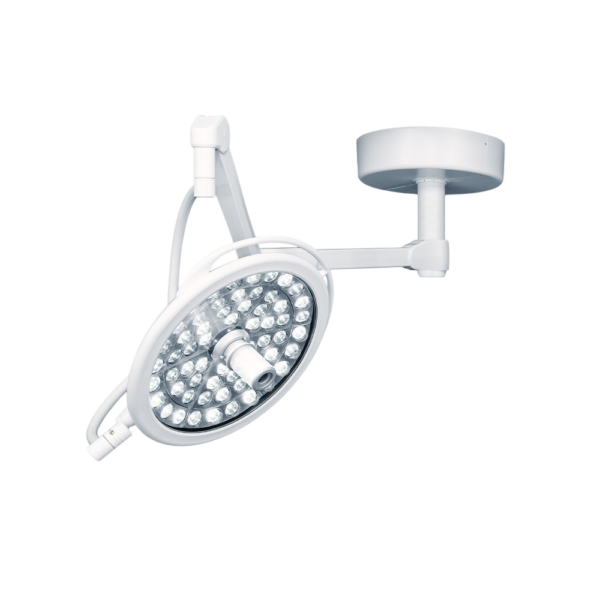

Configuration Single light head, or with HD camera, or monitor arm Single light head, or with HD camera, or monitor arm
Dual Mount Specifications

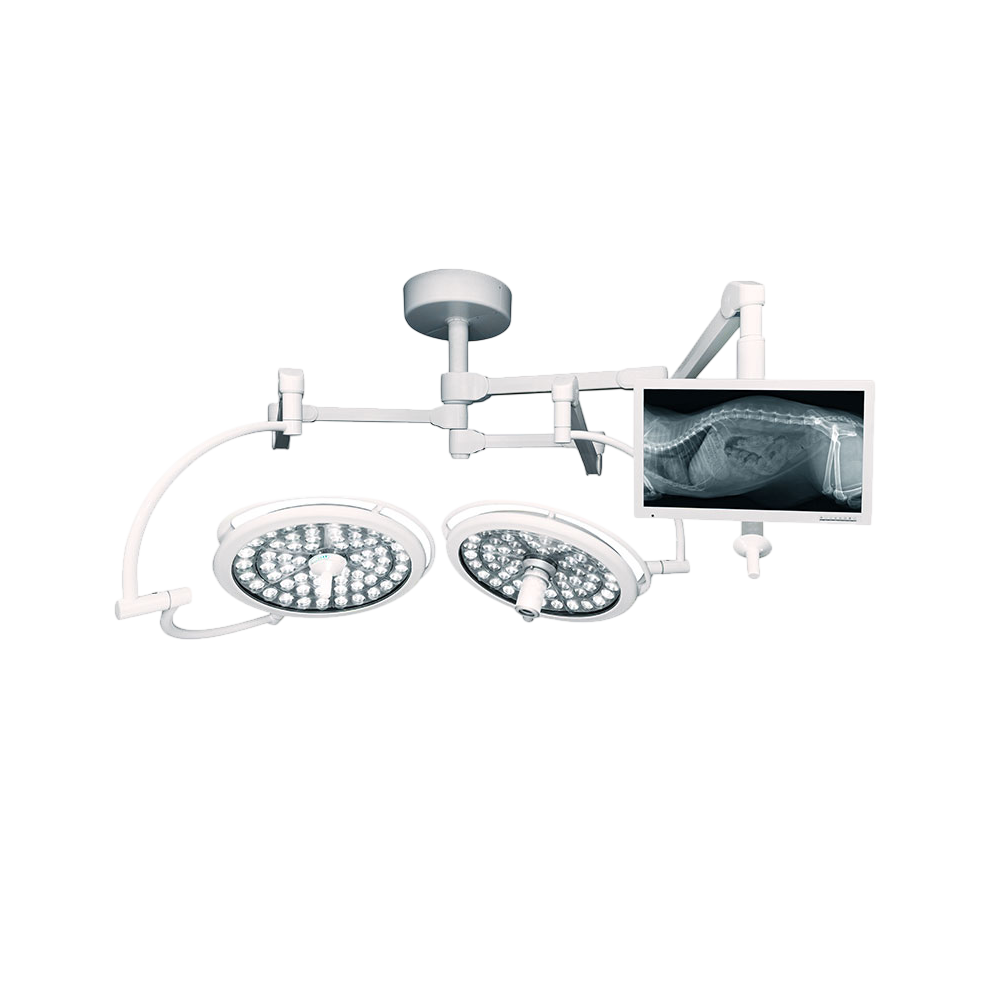

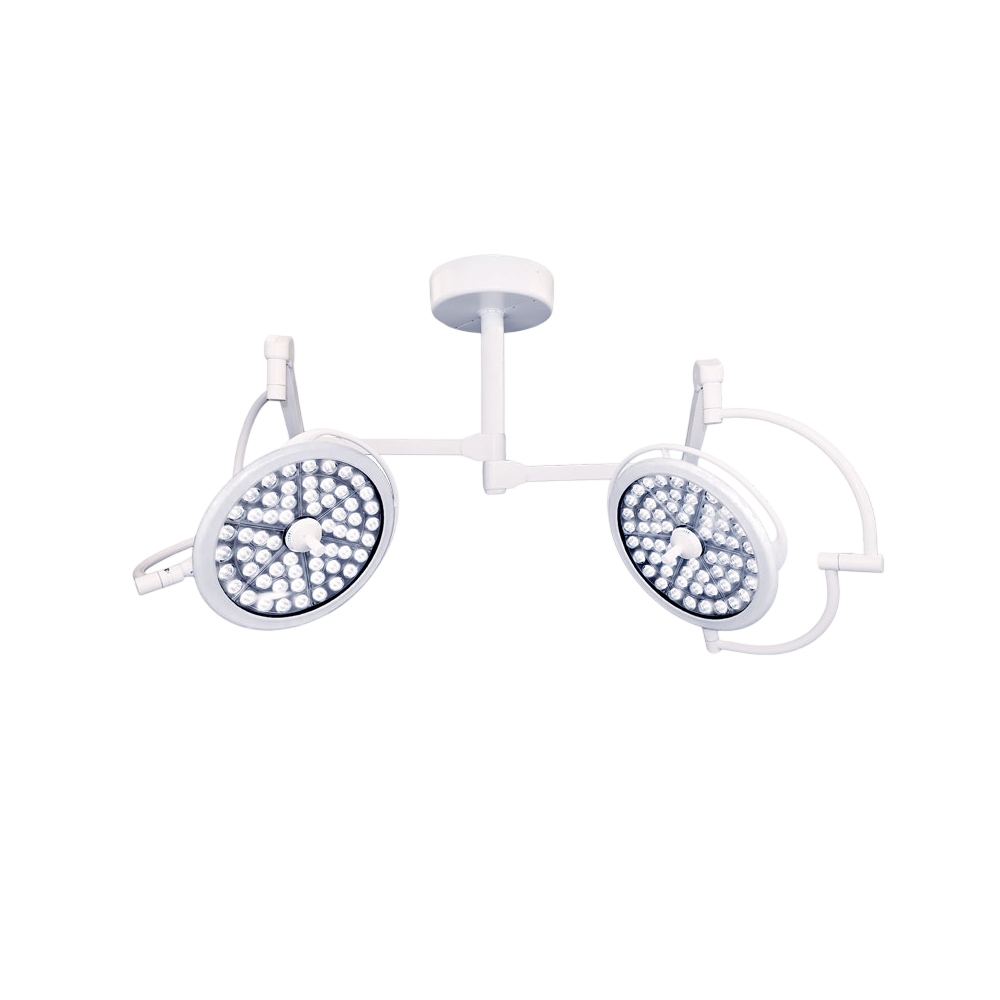

Configuration Two light heads, or one light and one video component (monitor or HD camera) Two light heads, or one light and one video component (monitor or HD camera)
Triple Mount Specifications

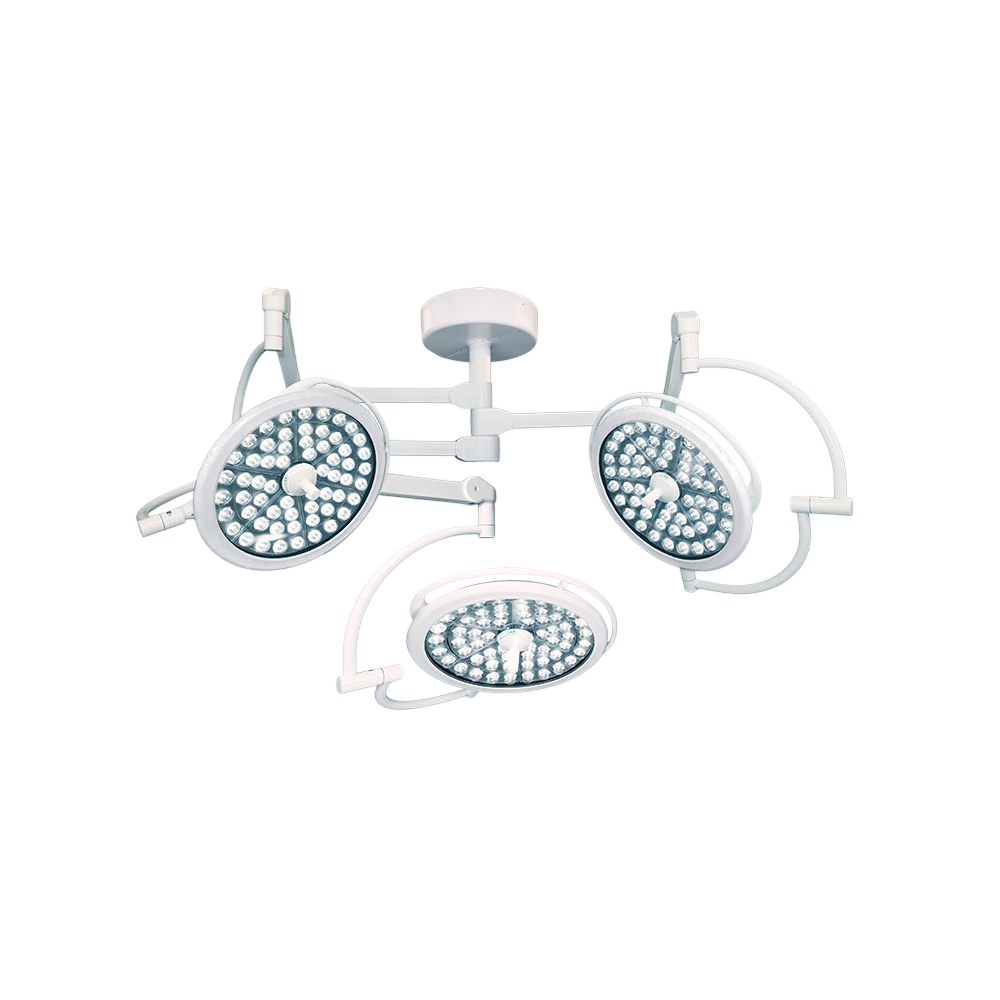

Configuration Three light heads, or two lights with one video monitor/camera, or one light with HD camera and monitor Three light heads, or two lights with one video monitor/camera, or one light with HD camera and monitor
Monitor Arm Specifications
Rotation 300 degrees 300 degrees
Monitor Compatibility Up to 26" monitors Up to 66.04 cm monitors
HD Camera Specifications
Resolution 1080i high-definition 1080i high-definition
Zoom 20x optical / 12x digital 20x optical / 12x digital
Video Output HD-SDI HD-SDI

Recommended Accessories

  • HD Camera: Provides 1080i high-definition video with 20x optical and 12x digital zoom, auto/manual focus, and sterilizable handle for enhanced visual support in veterinary procedures.
  • Monitor Arm: Offers flexible mounting with 300-degree rotation, compatible with up to 26" medical-grade monitors, including sterilizable handle and options for high-definition fiber optic cables.
  • Touchscreen Wall Control: Enables remote management of up to three lights, controlling on/off, dimming modes, and multi-head operations via a bright LCD display.
