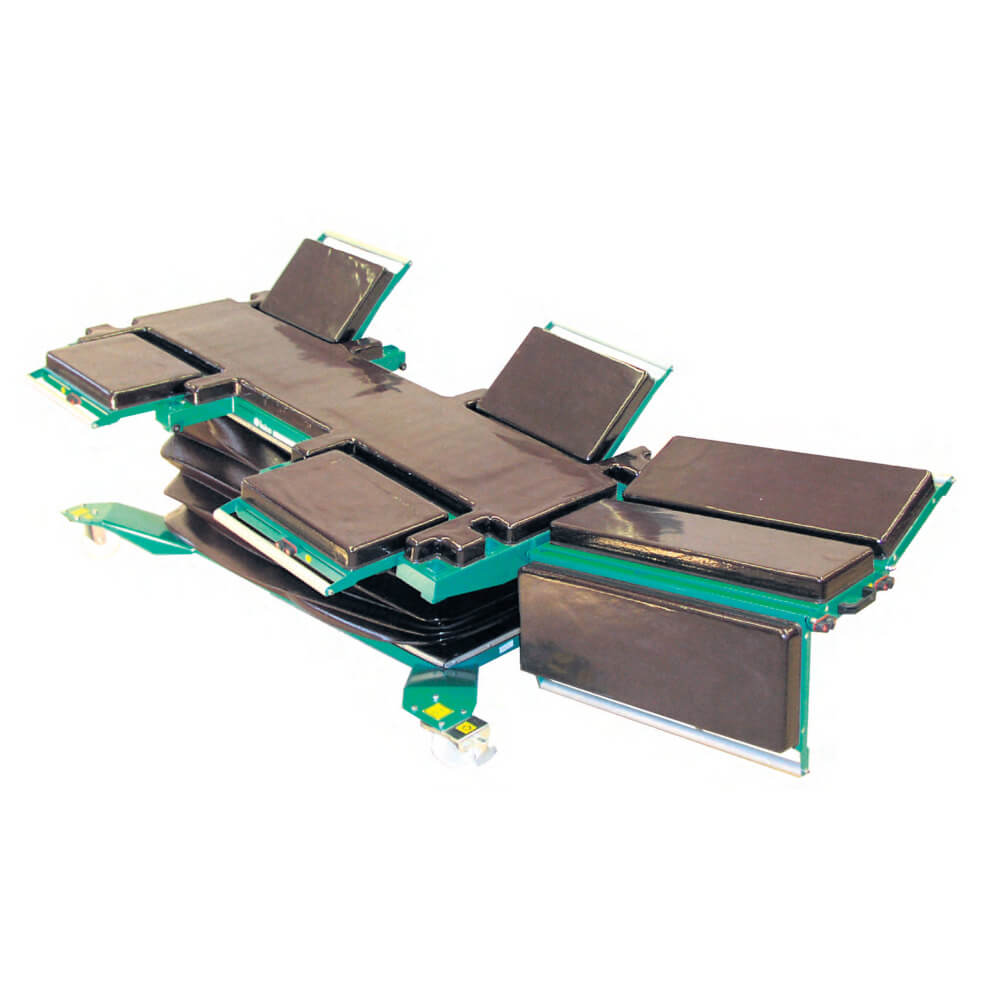

Haico Surgery 2 Equine Surgical Table

Web ID:

22524

Haico Surgery 2 Equine Surgical Table

The Haico Surgery 2 is a state-of-the-art equine medical examination and surgical table. Safety, functionality, mobility, hygiene and accessories make this table the total package.  With maximum comfort for horses, these tables are engineered for a wide range of positioning for all surgical procedures.  Over 90,000 horses per year worldwide are treated on HAICO Equine surgery tables.

Description

The Haico Surgery 2 is a state-of-the-art equine medical examination and surgical table. Safety, functionality, mobility, hygiene and accessories make this table the total package.  With maximum comfort for horses, these tables are engineered for the widest range of positioning for all surgical procedures.  Over 90,000 horses per year worldwide are treated on HAICO Equine surgery tables.

The advanced function and design of the high quality Haico surgery tables fulfill all requirements of an up-to-date equine surgeon. Where quality, safety, function and hygiene are the keymarks, these state-of-the-art surgery tables are the best choice.

Features
• Extreme versatile leg support
• Accessories include square or triangle colon trap
• Fast on/off middle panel
• Extensive range of accessories
• Stainless steel wheel castors with directional lock
• Push buttons on both sides of the table. Using is easy and reliable
• Unique system in leg support attachment for easy handling
• Side panels can be locked steplessly by the gas hydraulic cylinders
• Strong and flexible cover to protect mechanics and electronics

SAFETY
Low 12 volt voltage. Cable free electric unit. Totally protected structure. CE-certified. Documented quality and testing report included.

FUNCTION
Longitudinal tilt (only Surgery2), height and all panel adjustments can be controlled steplessly. For special surgeries, pelvic angle and head support angle can be changed in both directions. Mobility single-handedly even when loaded.

STRUCTURE
Narrow middle part prevents back strain. To get closer to the patient, the side-panels can be let down. HYGIENE Seamless, pressure-water-washable structure.

The Haico line of veterinary equine tables is a flexible platform that can be configured from the basic model into nine different configurations leading up to the top of the line Pro 3 model.  This platform provides horses and large animal breeds the space, stability, power, and unique features required for extreme heavy lifting, positioning, and restraint.



Warranty

2-Year Warranty for the original buyer against defects in material or workmanship under normal use in the service for which the product is intended. Includes table top and hydraulic pump. 5 Year Warranty for the Table Frame for the original buyer against defects in material or workmanship under normal use in the service for which the product is intended.  All warranties cover defects in material and workmanship, provided the product is properly installed, properly maintained, and used for the normal purpose for which intended, and damage is not the result of abuse, misuse or neglect. Infinium is not responsible for charges for repairs or other work without prior written authorization. We reserve the right to repair or replace defective parts at our sole discretion. This warranty does not include damage resulting from accident and expressly excludes normal wearing of parts or defect caused by transportation, accident, fire, flood, modification, alteration or negligence. Infinium shall not be liable for any direct or indirect, incidental, exemplary, or consequential damages or delay, including damages for loss of income or loss of use.

Specifications



Feature Specification
Dimensions
Table 114.17 x 55.12 in
Extended length 133.86 in
Head support of the table 35.43 x 39.37 in
Width of the table excluding side panels 19.69 in
Side panels, table 19.69 x 13.78 in
Side panels, head support 33.46 x 13.78 in
Wheels 5.91 in (Diameter)
Padding thickness 1.97 in
Weight 1036.17 lbs
Adjustability
Minimum height 12.60 in
Maximum height 44.09 in
Pelvic angle +/-25°
Head support +/-25°
Loading
Maximum load 2645.54 lbs
Lifting time 30 seconds
Electric Equipment
Operating voltage 12 V
Battery type Service free lead acid, cycle application – 12 V, 42 Ah
Automatic battery charger output 12 V, 6 A
Charger input 110 V US model / 240 V AC / 50-60 Hz
Battery charging time 6 hours, Table can be used during charging
Full battery 50 – 100 lifts
Surface Coating
Material Zinc plated, powder painted frame
Warranty
General 3 years
Metal parts 5 years
