Description
Stereo Microscope Series

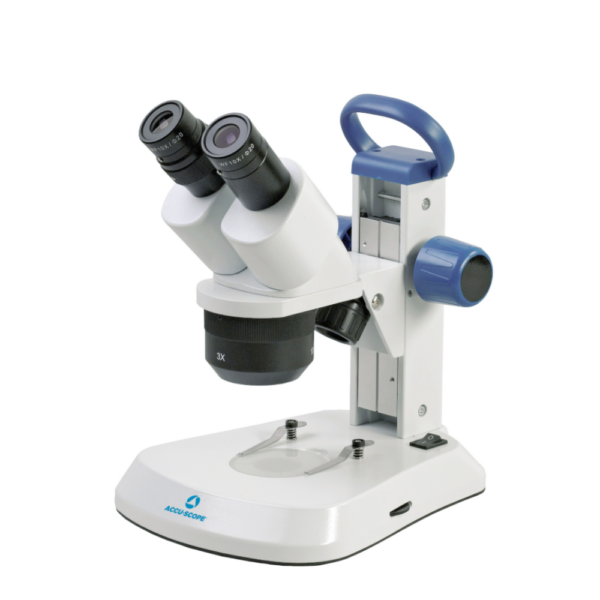

Accu-Scope EXS-210
An economical stereo microscope with superior optical performance, built to withstand rigorous classroom and lab use while delivering crisp, three-dimensional views across biology, botany, geology, and veterinary applications.
20,000-Hr
LED Lifespan
45°
Inclined Binocular Head
5-Year
Limited Warranty
5 lbs
Built-In Carry Handle
Superior Optical Design
Quality, Versatility & Performance in a Compact Body
The EXS-210's optical system delivers an outstanding depth of field, letting users simultaneously observe and focus on multiple specimen layers, critical for veterinary tissue inspection, insect anatomy, and geological samples alike.

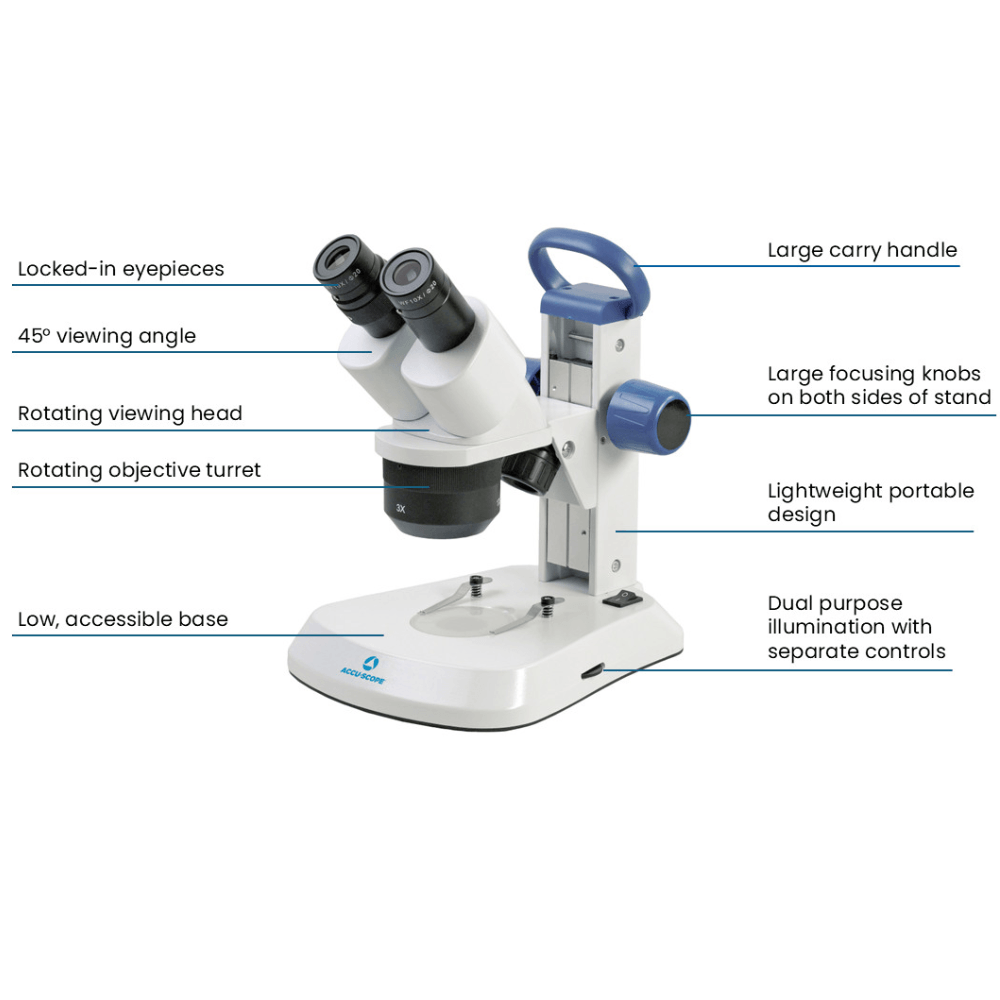

- Parfocal & parcentric fixed objectives for consistent, sharp focus during magnification changes

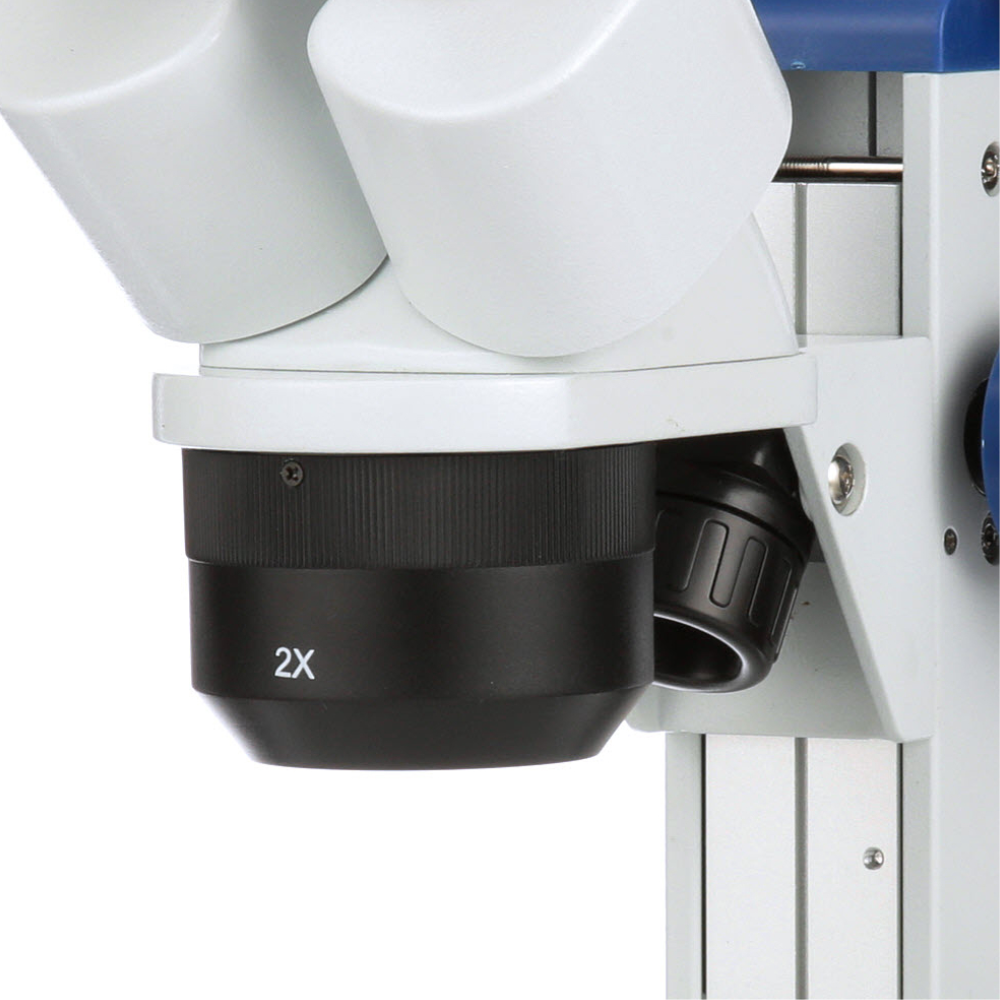

- Rotating objective turret with textured finger grip for rapid, one-touch power changes
- Binocular head rotates 360°, easy to reposition for any workflow
- Adjustable interpupillary distance (54–76mm) for all users
- Diopter adjustment ±5 for prescription-like comfort
- Locked eyepieces and binocular head: tamper-proof for shared environments

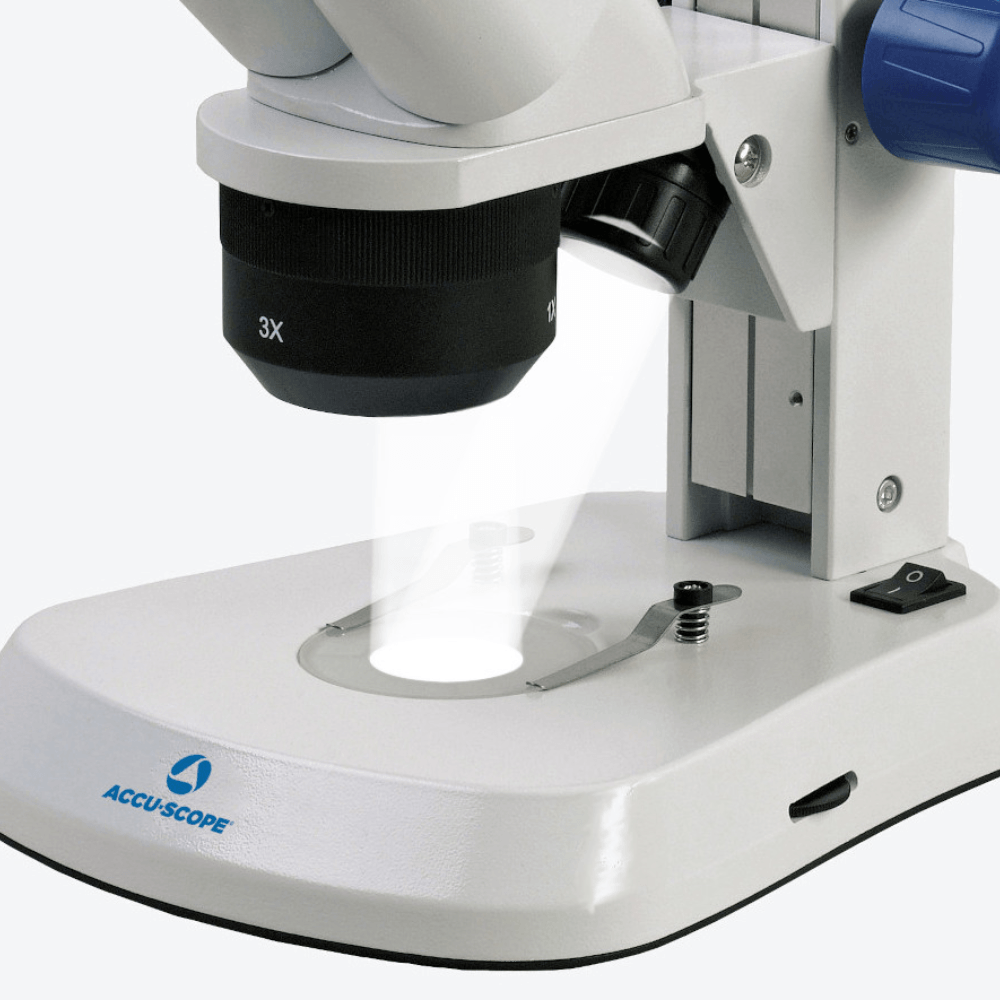

Intelligent Illumination
Dual LED Illumination: Above & Below
The EXS-210 features both incident (top) and transmitted/diascopic (bottom) LED illumination with independent on/off controls, giving you full flexibility for opaque and transparent specimens.
- Rechargeable LED batteries: up to 2 hours of cordless use per charge
- LED color temperature 6300–7000K for true, natural color rendering
- Adjustable brightness per illuminator for precise contrast control
- Frosted glass stage plate diffuses transmitted light evenly
- Black/white contrast plate included for surface detail enhancement
Built for Real-World Use
Durable, Portable & Student-Proof
Cast Alloy Aluminium Stand
Sturdy dovetail base with acid-resistant finish, engineered to absorb daily handling in high-traffic settings without wobble or drift.
Ergonomic Large Focus Knobs
Oversized dual focusing knobs on both sides of the stand accommodate left- and right-handed users with adjustable tension control for effortless, precise focusing.
Built-In Carrying Handle
Integrated grip handle and compact 5 lb. weight make transport between benches or rooms quick and safe, reducing accidental drops in busy labs.
Tamper-Resistant Design
Locked eyepieces and rotatable binocular head prevent unauthorized adjustments in shared settings, saving time and maintenance costs.
Available Configurations
Choose the Magnification That Fits Your Work
- Standard: 1× / 2×
- Mid-Range: 1× / 3×
- High Power: 2× / 4×
- 3-Step: 1× / 2× / 3×
- Wide Range: 1× / 2× / 4×
All configurations use WF10x eyepieces (20mm FOV) for total magnifications of 10×–40×. Optional WF15x and WF20x eyepieces available.
Technical Data
Full Specifications
| Viewing Body | Binocular, inclined 45°, rotatable 360°; interpupillary distance 54–76mm; diopter ±5; tamper-resistant lock |
|---|---|
| Optical System | Fixed magnifications, choose from: 1×/2×, 1×/3×, 2×/4×, 1×/2×/3×, or 1×/2×/4× |
| Objectives | Fixed, parfocal & parcentric; rotating turret with textured finger grip |
| Eyepieces | WF10x, 20mm field of view (locked); optional WF15x/15mm or WF20x/10mm |
| Focusing System | Dual focusing knobs, both sides; adjustable tension control |
| Stage | 59mm frosted glass plate (transmitted illumination) + 59mm black/white contrast plate |
| Illumination | Dual rechargeable LED: incident (top) & transmitted (bottom); independent controls; 2-hr cordless runtime; 6300–7000K; 20,000-hr bulb life |
| Stand | Cast alloy aluminium, acid-resistant finish, dovetail design with integrated carry handle |
| Dimensions (L×W×H) | 7" × 8½" × 11¾" |
| Weight | 5 lbs. |
| Included Accessories | Frosted glass stage plate, black/white contrast plate, dust cover, eyeguards, instruction manual |
| Optional Accessories | WF15x/15mm eyepieces, WF20x/10mm eyepieces |
| Warranty | 5-year limited (parts, labor, electronics); 1-year LED bulb warranty |
5-Year Limited Warranty
The EXS-210 is backed by Accu-Scope's industry-leading 5-year limited warranty covering parts, labor, and electronic components, plus a 1-year LED bulb warranty. Built to last. Backed to prove it.
