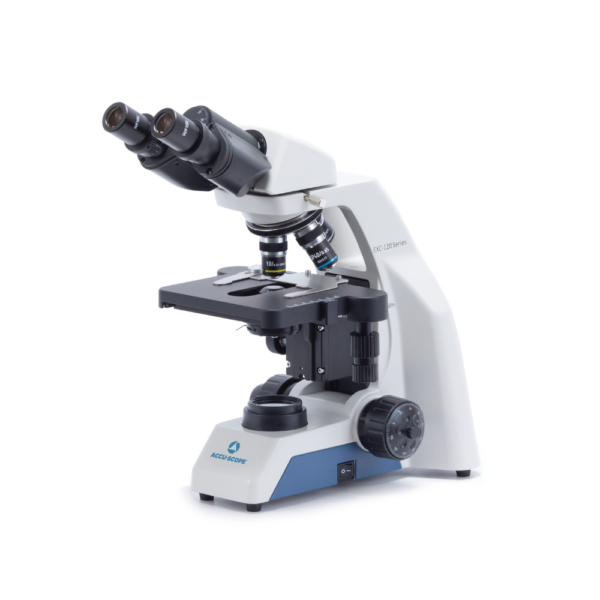

Accu-Scope EXC-120 Microscope

ACCU-SCOPE’s EXC-120 Microscope is a versatile, value-packed microscope designed for clinical and educational use, featuring durable optics, ergonomic design, and efficient LED illumination.

Category
Quote Cart

Description

ACCU-SCOPE’s EXC-120 Microscope is a versatile microscope for clinical and educational purposes. It offers high-quality optics, durability, and user-friendly features at a great value. With easy-to-clean objectives in various types, ergonomic design, and energy-efficient LED illumination, it’s an excellent choice for beginners in clinical microscopy.

Features:

  • Optical System: DIN, 160mm, anti-mold/anti-fungus
  • Transmitted Illumination: Variable LED illumination; pre-centered; LED lamp rated for 20,000 hours; power supply 110-240v UL listed; optional rechargeable LED base
  • Observation Methods: Brightfield, Phase contrast Darkfield, Simple polarization
  • Power Consumption: 3W
  • Weight (approx.): 15 lbs (standard binocular configuration
  • Dimensions: 255mm (L) x 198mm (W) x 368mm (H) (standard binocular configuration
  • Eyepieces: WF10x/18mm eyepieces; eyepieces lock in to prevent tampering; reticle holder, accepts 19mm reticle; with or without wire pointer (standard in one eyepiece)
  • Nosepieces: Rear facing, quadruple, ball bearing movement with positive click stops to ensure parcentration
  • Focusing System: Coaxial coarse and fine focus controls with adjustable tension control; all metal gears
  • Stand: Cast aluminum alloy; built-in fixed focus stops allow for rapid focusing while protecting specimens; built-in fixed focus stops allow for rapid focusing while protecting specimens; built-in carry handle and cord hanger
  • Stages: Double layer mechanical stage; smooth, rounded corners; Size: 150mm x 139mm; X-Y movement range of 75mm x 32mm; easy release slide fingers

  • Viewing Heads:

    • Monocular head, inclined at 30°
    • Monocular head with vertical camera port, inclined at 30°
    • Seidentopf Binocular Viewing Head, Inclined at 30°, Interpupillary distance 48-75mm; binocular eyetubes rotate 180° to raise/lower viewing position by 35mm; diopter adjustment on one eyetube
    • Seidentopf Trinocular Viewing Head, Inclined at 30°, Interpupillary distance 48-75mm; binocular eyetubes rotate 180° to raise/lower viewing position by 35mm; vertical camera port; diopter adjustment on one eyetube

  •  Objectives:

    • Achromat: 4x, 10x, 20x, 60xR*, 100xR* oil
    • Semi-Plan Achromat: 40xR*
    • Plan Achromat: 4x, 10x, 20x, 60xR*, 100xR* dry, 100xR* oil, 100xR* water
    • Phase Contrast Plan Achromat: 10x, 20x, 40xR*, 100xR* (included with phase contrast set)
    • *Spring-loaded

  • Condenser:

    • Abbe condenser, N.A. 1.25; Rack and pinion operation; Iris diaphragm; Swing-out filter holder
    • Turret phase contrast condenser, N.A. 1.25; Iris diaphragm; 10x, 20x, 40x, 100x phase annuli; Green filter; Centering telescope
    • Oil Darkfield condenser, N.A. 1.25-1.36

Specifications

Weight & Dimensions

  • Light Head Weight: 6.9 lb (3.1 kg).
  • Light Head Diameter: 9.2” (23 cm).
  • Shipping Weight: 47 lb (21.3 kg).
  • Shipping Dimensions: 36” (L) x 23” (W) x 18” (H) (91 cm x 58 cm x 46 cm).

Rotation

  • Arm Rotation: 540°.
  • Light Head Rotation:300°

Power & Light Output

  • Power & Light Output
  • Power Supply Circuit: 100 – 240 VAC, 50 / 60 Hz.
  • Power Handling Capacity:65 W.
  • Light Intensity Output: 55,000 lux (5,110 footcandles).
  • Light Source: Light Emitting Diode (LED) (16 W).
  • Rated LED Lifespan: 50,000 hours.
  • Number of LED: 8.
  • Light Color Temperature: 4,300° Kelvin.
  • Color Rendering Index: 97.
  • Light Field Diameter: 6” (15 cm).
  • Focal Length: 24” (61 cm).
  • Dimming Levels: 2.
  • Level 2: 55,000 lux (5,110 footcandles).
  • Level 1: 27,500 lux (2,555 footcandles).
