Complete Veterinary Endoscopy System
Product Summary

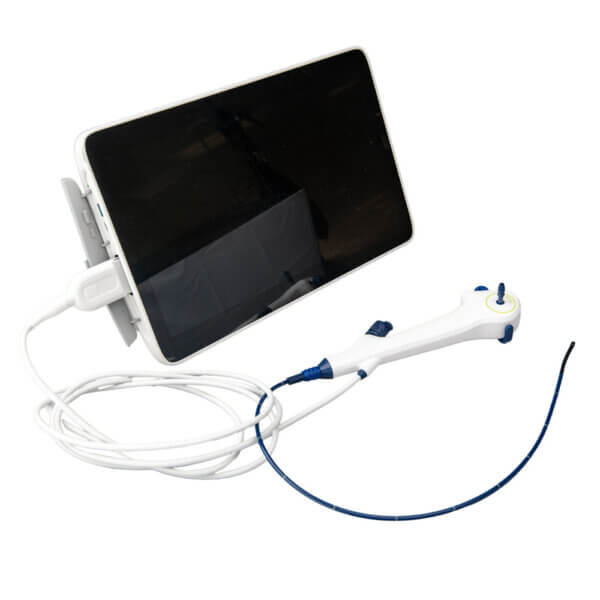

This versatile small animal flexible endoscope system delivers professional-grade diagnostic imaging at a practice-friendly scale. Supplied with three multi-use flexible scopes covering a broad range of patient sizes and procedures, the system pairs each scope with a compact 8-inch high-resolution LCD monitor and image processor — giving your team everything needed for gastrointestinal, respiratory, and urogenital endoscopy in a single, ready-to-use package.
Whether you are performing routine gastroscopy in a medium-sized dog or navigating the narrow airways of a cat or small exotic, the three included scope diameters ensure you always have the right instrument for the job. Intuitive two-button scope controls, one-button suction and water flow, and a portable battery-powered monitor make this system equally at home in a dedicated endoscopy suite or a mobile clinical setting.
3
Multi-Use Flexible Scopes Included
120°
Field of View
210°
2-Way Articulation (Up/Down)
8 in
HD LCD Monitor (1024 × 768)
Key Features
Three Scope Diameters
4 mm, 5.2 mm, and 5.8 mm scopes (all 55 cm working length) cover small exotics through medium-large dogs in a single system.
120° Wide Field of View
Broad 120° FOV captures more anatomy per view, reducing scope repositioning and shortening procedure time.
210° 2-Way Articulation
Up/down tip deflection up to 210° navigates tortuous anatomy with precision and minimal patient discomfort.
8-Inch HD LCD Monitor
Integrated 1024 × 768 image processor and monitor delivers sharp, colour-accurate live imaging and still capture.
Portable Battery Operation
Built-in rechargeable battery provides 2–3 hours of cordless runtime — ideal for mobile or multi-room use.
HDMI & USB Storage
HDMI output for an external display and USB storage port for direct image and video archiving without additional software.
Key Advantages
One System — Every Small Animal Patient
Versatility Without Compromise
Most practices must choose between a single-diameter scope that fits some patients well and others poorly, or invest in multiple single-purpose instruments. This system eliminates that trade-off by supplying three calibrated scope diameters in one package. The narrowest 4 mm scope threads through feline airways and small exotic GI tracts; the mid-range 5.2 mm scope suits cats and small-to-medium dogs; and the 5.8 mm scope handles medium and larger canine patients with a generous 2.8 mm working channel for instrumentation and suction. All three scopes share the same intuitive two-button handle and connect to the same monitor — so your team learns one workflow, not three.
Scope Specifications at a Glance
| Scope Model | Insertion Tube Diameter | Working Length | Instrument Channel |
|---|---|---|---|
| Scope A | 4 mm (0.16 in) | 55 cm (21.7 in) | 1.2 mm (0.047 in) |
| Scope B | 5.2 mm (0.20 in) | 55 cm (21.7 in) | 2.2 mm (0.087 in) |
| Scope C | 5.8 mm (0.23 in) | 55 cm (21.7 in) | 2.8 mm (0.11 in) |
Feature List
- Three multi-use flexible scopes included (4 mm, 5.2 mm, and 5.8 mm diameters)
- Uniform 55 cm (21.7 in) working length across all three scopes
- 120° wide-angle field of view for comprehensive mucosal assessment
- 2-way tip articulation: 210° up/down deflection range
- Two-button scope handle for video capture, still image, and freeze frame
- One-button control for suction or water/air flow
- Working channels of 1.2 mm, 2.2 mm, and 2.8 mm for instrument passage
- 8-inch (20.3 cm) high-resolution LCD monitor with integrated image processor
- Monitor resolution: 1024 × 768 pixels
- Monitor weight: 1.05 kg (2.31 lb) — lightweight and portable
- Built-in rechargeable battery: 2–3 hours of cordless operation
- HDMI output for connection to an external monitor or recording device
- USB storage port for direct image and video archiving
- Onboard recharging ports for convenient in-clinic power management
- Multi-use scope construction — designed for repeated use and reprocessing
- Compact, self-contained system suitable for mobile and in-clinic use
Clinical Applications
The 3X Multi-Use Flexible Endoscope system is designed to support a wide range of minimally invasive diagnostic and therapeutic procedures in small animal practice. The three scope diameters collectively address the full spectrum of companion animal patients encountered in a general or specialty veterinary setting.
Gastrointestinal Endoscopy
Esophagoscopy, gastroscopy, duodenoscopy, and colonoscopy in cats, dogs, and small exotic species. The 5.2 mm and 5.8 mm scopes provide working channels suitable for biopsy forceps and foreign-body retrieval instruments.
Respiratory Endoscopy
Rhinoscopy and bronchoscopy in cats and small dogs using the slim 4 mm scope, enabling visualisation of nasal passages, nasopharynx, trachea, and mainstem bronchi with minimal trauma.
Urogenital Endoscopy
Cystoscopy and vaginoscopy in female dogs and cats, facilitated by the narrow 4 mm and mid-range 5.2 mm scopes for urethral and bladder mucosal evaluation.
Otoscopy & Exotic Animal Procedures
The 4 mm small animal flexible endoscope is well suited to video otoscopy in cats and small dogs, as well as GI and respiratory endoscopy in rabbits, ferrets, and other small exotic patients.
System Includes
Three multi-use flexible endoscopes (4 mm, 5.2 mm, and 5.8 mm × 55 cm), 8-inch HD LCD monitor with integrated image processor, rechargeable battery, HDMI output, and USB storage port — everything required to begin endoscopic procedures immediately upon delivery.
