Veterinary Endoscopy Equipment

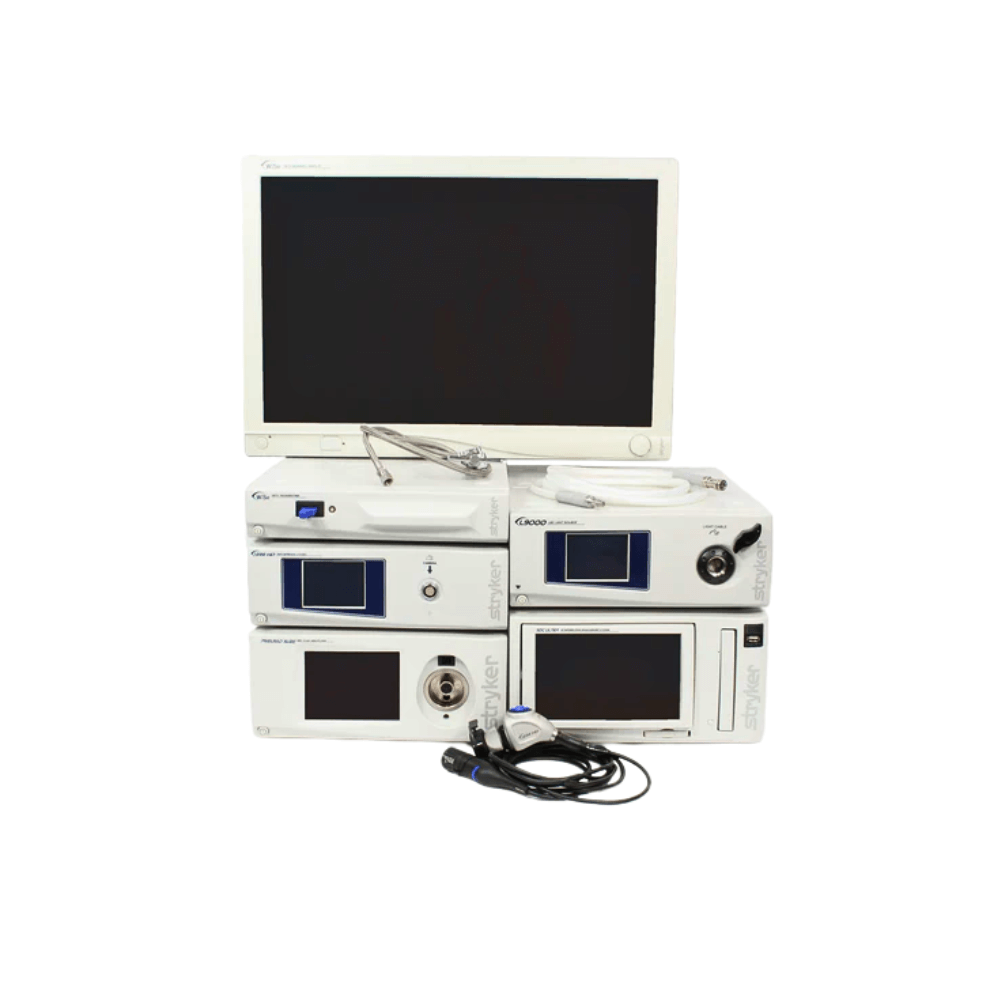

Refurbished Stryker 1288 HD Video Endoscopy Tower System
An HD 3-chip camera tower for small animal arthroscopy, laparoscopy, ENT, and other rigid scope procedures, with the light source, monitor, and documentation device in one system.
1920 x 1080p
HD resolution
3-Chip
1/3 in progressive CCDs
9
Specialty presets
16
Enhancement levels
Overview
This Refurbished Stryker 1288 HD Video Endoscopy Tower System is built around the Stryker 1288 HD camera console, the third generation of Stryker's HD 3-chip camera line. The tower pairs the console with a light source, an HD video monitor, and a documentation device for still and video capture.
The console processes the image from 1/3 in progressive scan CCDs at up to 1920 x 1080p. Its front touch screen sets enhancement, light level, zoom, and white balance, and nine specialty presets match the picture to arthroscopy, laparoscopy, ENT, and other scope work.
Two DVI-I outputs, a DisplayPort, and an S-Video output feed monitors and recorders. The console runs 1288 HD 3-chip camera heads and takes eyepiece scopes through a C-mount coupler.
Key Features
Touch screen console
Set enhancement, light level, zoom, and white balance from the front panel touch screen, with an on-screen meter on the monitor.
Nine specialty presets
Arthroscopy, Cystoscopy, ENT/Neuro, Flexi-Scope, Hysteroscopy, Laparoscopy, Laser, Microscope, and Standard camera settings.
1080p HD 3-chip imaging
Three 1/3 in progressive scan CCDs output 1280 x 1024, 720p, or 1080p, with 16 switchable enhancement levels for picture sharpness.
Automatic shutter
The shutter adjusts from 1/60 to 1/50,000 second, and the camera head arrow buttons raise or lower the light level in 8 steps.
Four video outputs
Two 29-pin DVI-I outputs, one DisplayPort, and one S-Video output, so a second monitor or recorder can run from an open output.
Remote capture control
Two remote outputs let the camera head start photo or video capture on up to two connected devices, and a SIDNE port supports voice or tablet control.

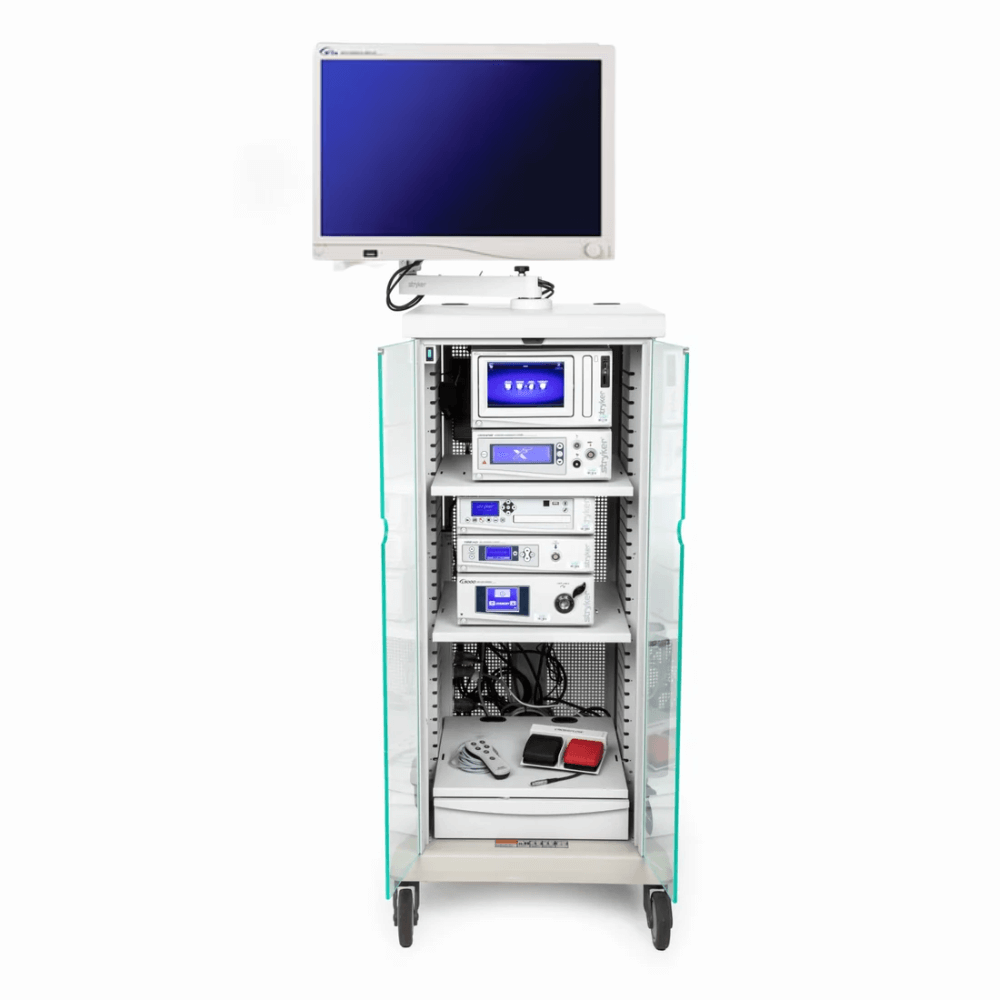

Tower Components
- Camera console: Stryker 1288 HD camera control unit with touch screen
- Light source: xenon or LED
- Monitor: HD video monitor
- Documentation: still image and video capture device
Veterinary Applications
Use the tower for small animal arthroscopy of the stifle, shoulder, and elbow, laparoscopic and thoracoscopic procedures, rhinoscopy and otoscopy, and cystoscopy, with rigid scopes fitted through a C-mount coupler. The specialty presets match the camera to each scope type, and the remote capture outputs save stills and video from each case for patient records and client updates.
