MRI Compatible Veterinary Monitoring

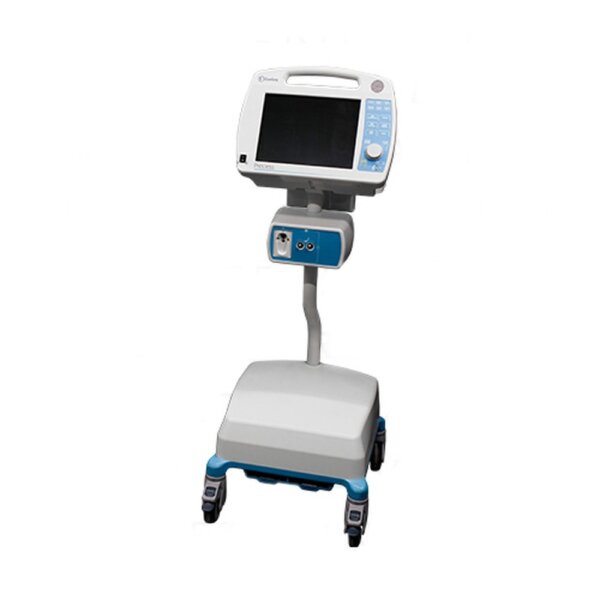

Refurbished Invivo 3160 Precess Blue MRI Patient Monitor
Refurbished MRI compatible full system: WPU base and wireless DCU for ECG, respiration, SpO2, NIBP, and EtCO2.
3.0 T
Up to 3.0 Tesla
WPU + DCU
Full system
2.4 GHz
Wireless ECG and SpO2
EtCO2
With ECG, SpO2, and NIBP
Overview
The refurbished Invivo 3160 Precess Blue is an MRI compatible patient vital signs system for veterinary MRI suites. This full system includes a WPU base unit and a wireless color Display Controller (DCU) with an integrated dual-channel recorder. The operator monitors ECG, respiration, SpO2, NIBP, and EtCO2. Full control of patient monitoring and alarms is on the wireless DCU.
The DCU must remain behind the 1000 Gauss line (10-12 feet with a 1.5T MRI) unless the printer is removed. The WPU base stays behind the 5000 Gauss line (2-3 feet with a 1.5T MRI). The Precess Blue works with MRI scanners up to 3.0 Tesla.
The Precess Blue is similar in appearance to the 3160 Precess. The base unit and the modules are modular and programmable, like the Expression.
Key Features
MRI compatible to 3.0 Tesla
Works with MRI scanners up to 3.0 Tesla. Keep the DCU behind the 1000 Gauss line and the WPU base behind the 5000 Gauss line.
Wireless DCU control
Wireless color display controller for full control of patient monitoring and alarms.
ECG through EtCO2
ECG, respiration, SpO2, NIBP, and EtCO2 on this system.
Wireless 2.4 GHz modules
Separate 2.4 GHz modules for ECG and SpO2, plus a module charger and four module batteries.
Modular, like the Expression
Similar in appearance to the 3160 Precess. The base and modules are modular and programmable, like the Expression.
Dual-channel recorder
Integrated recorder on the DCU. Remove it if that unit goes into the MRI room.
Included with this system
- WPU base, Precess Blue
- Wireless color DCU with integrated dual-channel recorder (recorder can be removed if the unit goes into the MRI room)
- Wireless 2.4 GHz ECG module
- ECG lead cable and standard Quadtrode electrodes (10-count starter kit)
- Wireless 2.4 GHz SpO2 module
- SpO2 grip sensor fiber optic cable and SpO2 grip starter kit
- NIBP with dual hose, plus adult, infant, and pediatric cuffs
- Adult and neonatal NIBP sets
- EtCO2 standard-flow water trap and clear sample line
- Batteries for the DCU and the base
- Wireless module battery charger for the ECG and SpO2 modules
- Four batteries for the wireless modules
- Power supplies and cables for the WPU and the DCU
- Quick start reference guide
- Operating manual on CD
Veterinary Applications
Use this refurbished system in a veterinary MRI suite when the case needs ECG, respiration, SpO2, NIBP, and EtCO2 in the magnet environment. Monitoring and alarms are controlled from the wireless DCU. Keep the DCU behind the 1000 Gauss line unless the printer is removed (10-12 feet with a 1.5T MRI). Keep the WPU base behind the 5000 Gauss line (2-3 feet with a 1.5T MRI). The system works with scanners up to 3.0 Tesla.
