Product Summary

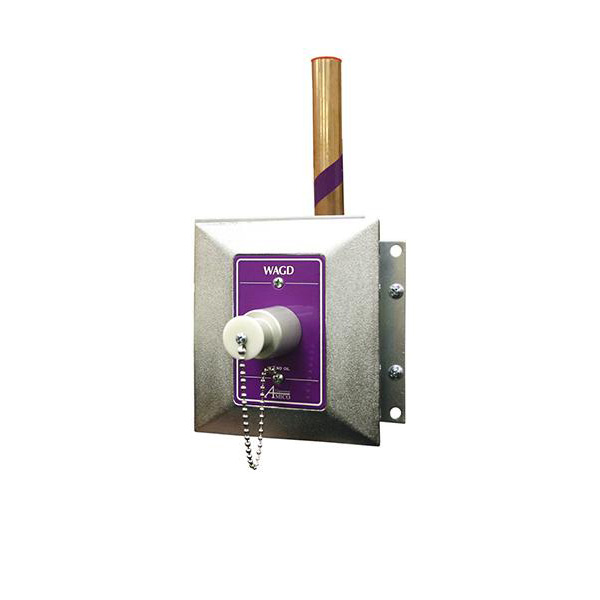

The Dispomed Passive Evac WAGD Wall Outlet is a wall-mounted waste anesthetic gas disposal (WAGD) outlet for veterinary facilities that use a passive WAGD evacuation path. It provides a dedicated wall connection point for evacuating waste anesthetic gases as part of a copper-pipe medical-gas / WAGD installation.
Confirm WAGD piping, indexing, and room layout with the facility’s medical-gas plan when quoting. Do not treat the wall outlet alone as a complete scavenging system.
WAGD
Service
Up to 1″
Wall adjust
Indexed
Gas services
Key Features
Passive WAGD wall outlet
Passive WAGD wall outlet for waste anesthetic gas disposal
Pressure testing
100% pressure testing of each outlet; cleaned for medical gas service
Indexed gas services
Indexed to eliminate interchangeability of gas services
Wall thickness adjustment
Wall thickness adjustment up to 1″ (25 mm)
Copper pipe installations
For copper pipe installations
WAGD flow rate
WAGD flow rate exceeds applicable requirements (per manufacturer; code name omitted)
Installation / Use
Service path
Specify as a wall outlet on a passive WAGD / copper-pipe medical-gas evacuation path.
Fit
Adjust for wall thickness up to 1″ (25 mm); confirm indexing so gas services are not interchangeable.
Verify
Each outlet is pressure-tested and cleaned for medical gas service before install (per manufacturer). Pair only with scavenger interfaces, tubing, and related Moduflex components the facility design requires.
