Description
Gas evacuation
Product Summary

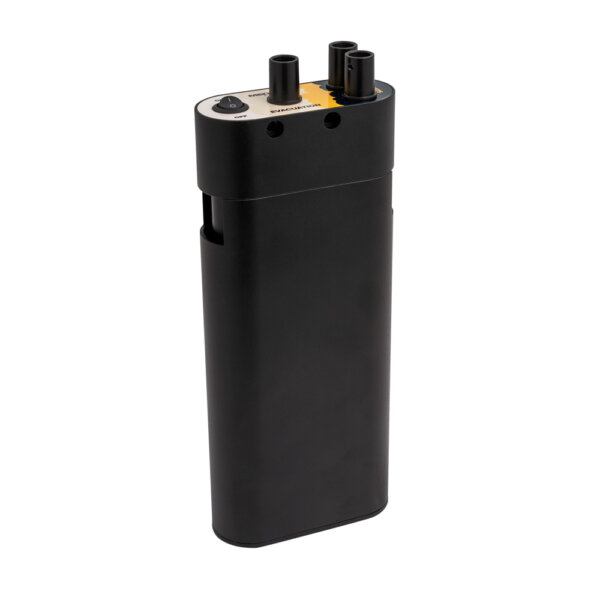

The Dispomed Moduflex™ Scavenger Interface with Integrated Ventilator is a single-machine waste-gas evacuation interface with a built-in fan for small-animal anesthesia machines. It evacuates the waste gas of one anesthesia machine at a time and adapts to large airflow variation so breathing-bag depletion or added circuit resistance is less likely when demand changes.
Power is a 12-volt supply with a 70-inch cord. Dispomed describes the unit as quiet and Made in Canada; covered by a 5-year warranty. Pair with tubing, wall plate, Moduflex gas evacuation outlet, coupler, and optional universal bracket as the room layout requires.
1 machine
Capacity
50 ft
Tubing support
12 V
Power
Key Features
1 anesthesia machine
Designed for 1 anesthesia machine at a time
Integrated fan
Integrated fan pushes air (does not pull)
Up to 50 feet of tubing
Accommodates up to 50 feet of tubing
Fresh-gas flow
Operates at fresh-gas flow up to 10 litres/min
Small-animal machines
Designed for all small-animal anesthesia machines
5-year warranty
Made in Canada; quiet (per manufacturer)
Feature List
- Designed for 1 anesthesia machine at a time
- Integrated fan pushes air (does not pull)
- Accommodates up to 50 feet of tubing
- Operates at fresh-gas flow up to 10 litres/min
- Adapts to large airflow variation (per manufacturer)
- Designed for all small-animal anesthesia machines
- Installable on all brands with optional Universal Bracket for Moduflex Bain and Scavenger Interface
- Ports: 1 × 19 mm evacuation outlet; 2 inlets (absorber system and Bain circuit)
- 12-volt power supply; 70-inch electrical wire
- Made in Canada; quiet (per manufacturer)
- 5-year warranty
Installation / Use
Mount
Install on the small-animal anesthesia machine; use the optional Universal Bracket when mounting on non-Moduflex / all-brand frames.
Port connections
Connect absorber and Bain circuit to the two inlets; route evacuation through the 19 mm outlet.
Tubing & power
Run up to 50 feet of evacuation tubing as layout allows; connect the 12-volt supply (70-inch cord). Confirm any 12V adapter / conversion kit Dispomed lists for this interface family when quoting.
Operate
Fan pushes waste gas toward the evacuation path while the interface adapts to airflow variation at the breathing circuit.
