Moduflex Gas Evacuation Ventilator

Overview

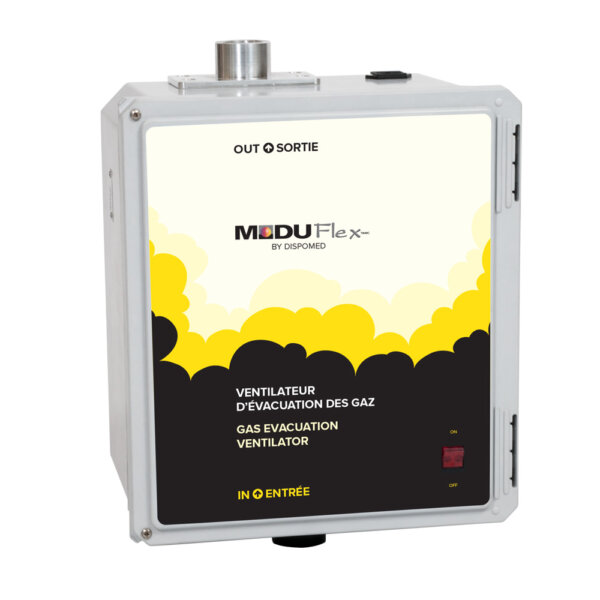

The Dispomed Moduflex™ Gas Evacuation Ventilator is a semi-active blower assembly for veterinary clinics and hospitals. Per Dispomed, it evacuates halogenated gases/nitrous-oxide used during anesthesia when installed as part of a piped scavenging network, helping keep waste anesthetic gases from accumulating in the operating room.

Used with scavenger interfaces, the blower ties into a pipe network that connects each room with an anesthesia machine. Confirm 110V vs 230V when quoting. Covered by a 5-year warranty. Do not treat the ventilator alone as a complete scavenging system.

Key Features

Feature List

• Semi-active gas-evacuation blower / ventilator
• Evacuates halogenated gases/nitrous-oxide used during anesthesia (per Dispomed)
• Works with up to 8 anesthesia machines
• Designed for one passive scavenger interface per anesthesia machine
• Mounts on wall, ceiling, or in attic
• Electrical options: 110V (`985-0080-000`) and 230V (`985-0080-100`)
• Electrical guide: 110–120 V / 0.750 A; 220–240 V / 0.5 A
• Sound level 44–46 dB
• 5-year warranty

How It Works

1. Network

   Blower assembly connects to a network of pipes linking each room that has an anesthesia machine.

2. Continuous evacuate

   Ventilator runs continuously while each scavenger interface controls airflow at its machine.

3. Scale

   System is designed for up to eight machines, with one passive scavenger interface per machine.

4. Place

   Install the blower on the wall, on the ceiling, or in the attic per facility layout; select 110V or 230V MPN at quote.
