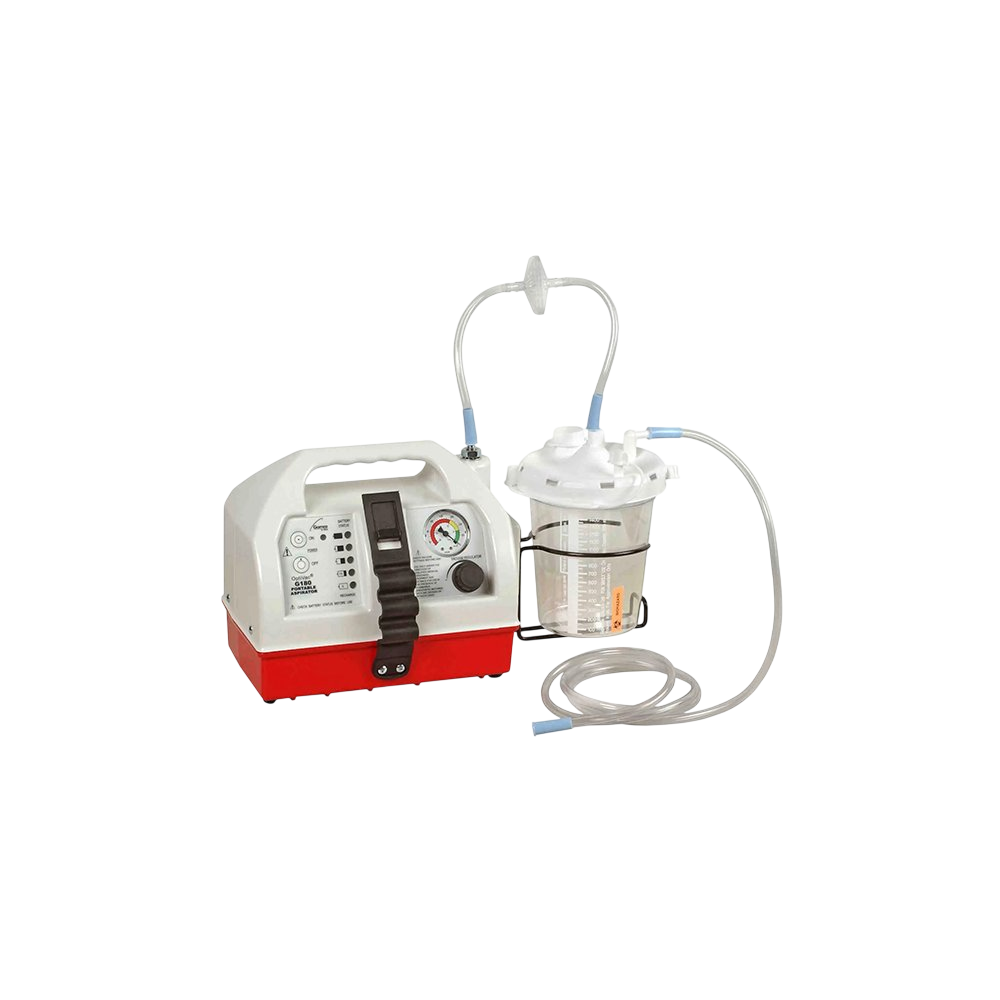

The Gomco OptiVac AC/DC Portable Suction Unit is a versatile, high-performance aspiration device designed for reliable suction in veterinary settings. Offering both AC and DC power options, it ensures continuous operation during procedures, emergencies, and field use, with adjustable vacuum levels for precise animal health applications.
The Gomco OptiVac AC/DC Portable Suction Unit from Infinium Veterinary delivers reliable, high-performance suction for veterinary practices, clinics, and field operations. Designed for versatility, this compact unit operates seamlessly on both AC and DC power sources, ensuring uninterrupted fluid aspiration in diverse animal care environments—from routine procedures to emergency interventions. Its durable construction and intuitive controls make it a trusted tool for enhancing efficiency and outcomes in veterinary medicine.
Switch effortlessly between AC clinic power and DC battery mode for mobile use in animal emergencies, ensuring reliability without power constraints.
Weighing just 8.6 lbs, its compact design allows easy transport to remote sites or within facilities, maintaining powerful performance on the move.
Built-in battery status indicators and automatic shut-off features minimize downtime, keeping your veterinary team focused on patient care.
Operates at a low 60 dBA to reduce animal stress, with disposable canisters and hydrophobic filters for simple, infection-free maintenance.
| Specification | Details |
|---|---|
| Power Source | AC (100-240V) / DC (12V battery) |
| Vacuum Range | 25-550 mm Hg (±10%) |
| Max Flow Rate | ≥30 LPM |
| Battery Runtime | Up to 3 hours at max vacuum |
| Dimensions | 9.5″ W x 10.5″ D x 9.25″ H |
| Weight | 8.6 lbs (with battery) |
| Noise Level | 60 dBA |
| Operating Temperature | -4°F to 120°F |
Tailored for animal health professionals, the Gomco OptiVac supports a range of critical tasks in veterinary care.
| Parameter | Value (Imperial) | Value (Metric) |
|---|---|---|
| Dimensions | 9.4" H x 7.5" W x 16.8" L | 239 mm x 191 mm x 427 mm |
| Weight | 11.4 lbs. | 5.18 kg |
| Vacuum Range | 25-550 mm Hg | |
| Vacuum Flow | Greater than 30 lpm | |
| AC Operation | 110-230 volts, 50/60 Hz | |
| DC Operation | 12 volt DC battery | |
| Battery Type | Sealed lead acid | |
| Battery Life at Maximum Vacuum | 3 hours at 550 mm Hg | |
| Battery Charge Time | Full charge in 8 hours | |
| Battery Charge Status | Yes; 5 indicator lights | |
| Bad Battery Sensor | Yes; 5 red LEDs | |
| Battery Depleted | Unit automatically shuts off | |
| AC Charger | Internal charger | |
| Operation with Depleted Battery | Yes; charging circuit can run on AC if battery is depleted | |
| Operating Temperature | -4° F to 120° F | |
| Sound Level | 60 dBA | |
| UL Approval | Tested to UL 60601-1 | |
