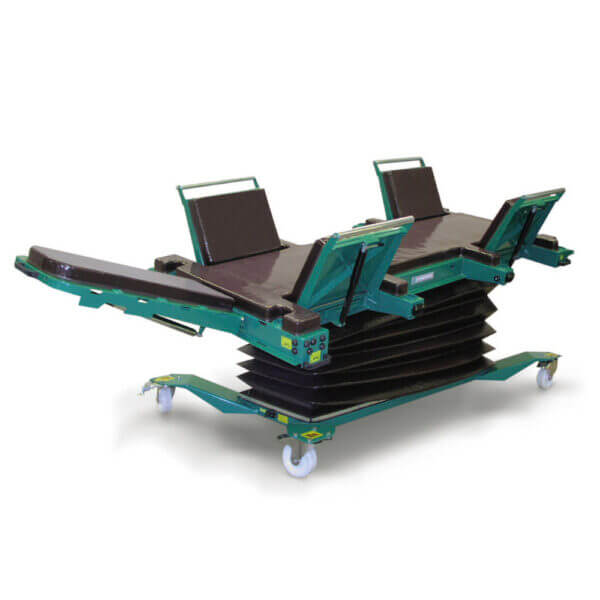

Name: Haico Pro 3 Equine Surgical Table
Brand: Infinium
Availability: InStock

Description

The Haico Pro3 is a state-of-the-art equine medical examination and surgical table. Safety, functionality, mobility, hygiene and accessories make this table the total package. With maximum comfort for horses, these tables are engineered for the widest range of positioning for all surgical procedures. Over 90,000 horses per year worldwide are treated on HAICO Equine surgery tables.

Haico Pro3 Features

Engineered for heavy animals: Up to 2866 lbs with a length of up to 118 inches

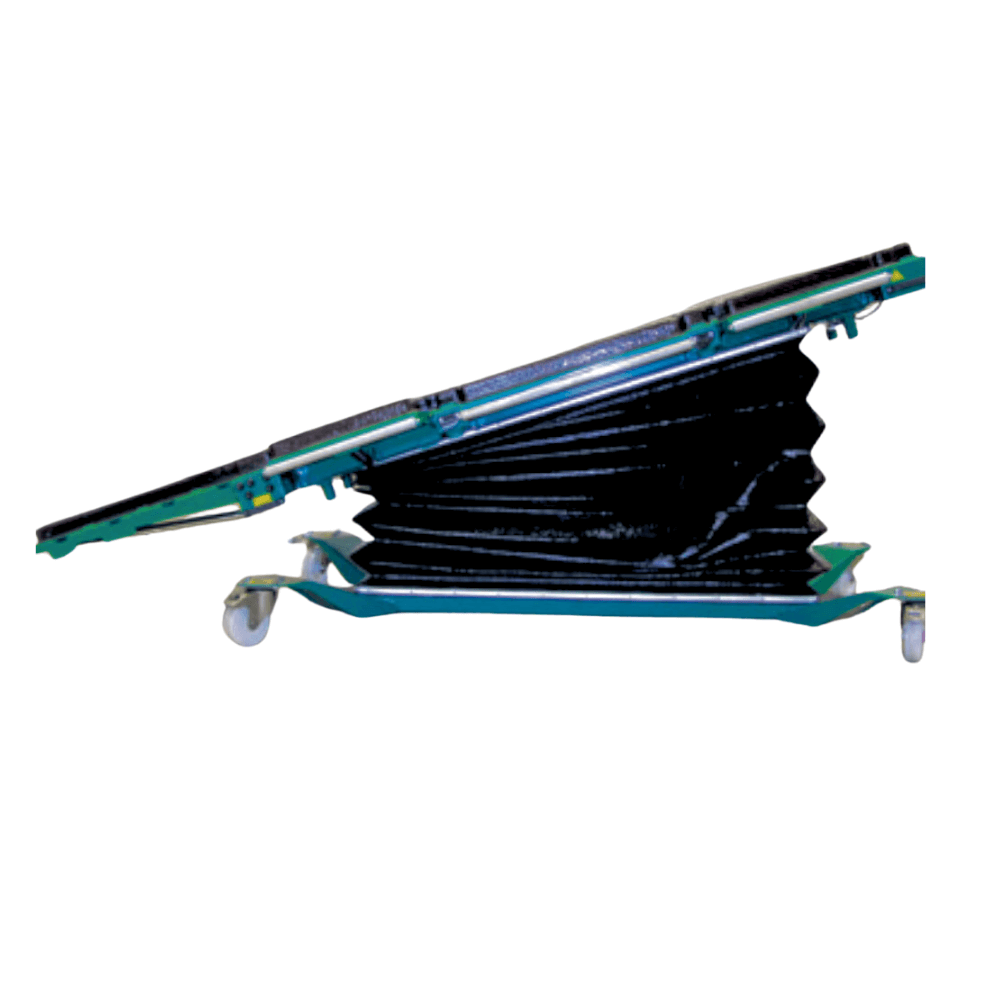

4-way tilt, longitudinal +/- 25° (pelvic angle required for laparoscopic surgery called Trendelenburg position) and lateral +/- 12° – There are some latest indications in abdominal surgery where a lateral lift is helpful
Table top available in two different sizes – Medium and Large
Table top is 200 mm longer and 50 mm wider that in the Telgte II – Telgte II table is mainly designed for horses like medium size warmbloods and thoroughbred race horses. This model table top is also suitable for bigger warmbloods and any other breed that are bigger. This gives more possibility to position the horse on the table. The HAICO PRO3 can however be suited for smaller horses perfectly as well
Removable middle panel is 150 mm longer than the Telgte II model – This will allow much more mobility to the surgeon spec in abdominal surgery
All side panels are easily removable. Head support can be moved sideways from end to end. Head support sides are removable – All this will allow perfect access of the surgeon and nurses in what ever position the horse is on the table. Also the horse can be positioned ideally for any specific need
Control buttons located in front for easy access during operation
Two speeds on lifting: normal speed when the horse is on the table and quicker speed for lifting unloaded table – Double speed (from bottom to top in approx. 10 seconds) on lifting will make the operation of the table when empty faster and more convenient. Nurses/Surgeons do not have to stay on their knees for a long time moving the table from down position to up, this especially helpful when the surgery is over and they are cleaning the table and it also saves the battery load. Normal speed resumes when the patient is on the table
New extremely durable Al Oxide Blast Double Paint treatment on all metal surfaces
Special battery with 10 year service life allows table to be used during charging
Minimum height only 30 cm (1 ft)
Purpose designed extra air padding unit (optional) – Allows easy access from all directions to the horse. Supports on important areas where the pelvis and wrist are resting in dorsal recumbence
Fully loaded with all accessories available

Optional Upgrades

Electric air pump & padding: adjustable per needed support area and can bend under the middle if not required
Leg support 100 mm with velcro: fixed to side panels or 10 attachments around the table
Should supports: Fast and easy positioning of the horse in dorsal recumency
Moving unit / rolling jack: simple single-user movement minimizes operator stress and enhances safety
MRI compatible PRO3: Polycarbonate support for CT/MRI
Colon tray: 3 types which can attach to 10 different connection points
Protection plastic unit: rolled surgery grade plastic for the table surface for better hygiene
Stainless table top

Warranty

2-Year Warranty for the original buyer against defects in material or workmanship under normal use in the service for which the product is intended. Includes table top and hydraulic pump. 5 Year Warranty for the Table Frame for the original buyer against defects in material or workmanship under normal use in the service for which the product is intended. All warranties cover defects in material and workmanship, provided the product is properly installed, properly maintained, and used for the normal purpose for which intended, and damage is not the result of abuse, misuse or neglect. Infinium is not responsible for charges for repairs or other work without prior written authorization. We reserve the right to repair or replace defective parts at our sole discretion. This warranty does not include damage resulting from accident and expressly excludes normal wearing of parts or defect caused by transportation, accident, fire, flood, modification, alteration or negligence. Infinium shall not be liable for any direct or indirect, incidental, exemplary, or consequential damages or delay, including damages for loss of income or loss of use.

Specifications

Feature	Specification
Dimensions
Table top including head support	118.11 x 55.12 in or 110.24 x 55.12 in
Head support of the table	15.75 x 33.46 in or 11.81 x 33.46 in
Table width excluding side panels	19.69 in
Side panels – table	18.11 x 14.57 in
Side panels – head support	11.81 x 19.69 in
Wheels	5.91 in (Diameter)
Padding thickness	1.97 in
Weight	1212.54 lbs
Adjustability
Minimum height	13.39 in
Maximum height	43.31 in
Pelvic angle	+/-25°
Head support angle	+/-25°
Lateral angle	+/-12°
Head support	Removable
Head support sides	Removable
Side panels	Removable
Control buttons	In front both sides
Loading
Maximum load	2866.01 lbs
Lifting time normal	35 sec
Lifting time fast for unloaded table	15 sec
Electric Equipment
Operation voltage	12 V
Battery service	Free lead acid cyclic application
Automatic battery charger output	12 V 10 A
Charger input	110 V / 240 V AC / 50-60 Hz
Battery charging time	6 hrs
Full battery	ca.30 lifts
Wireless remote control	Yes
Readiness for transport unit	Yes
Table can be used during charging	Yes
Surface Coating
Material	AL oxide blast double paint
Equipment
Complete equipment	As standard
